Dual Flanges Vavles MOPA Fiber Lasers Marking Machine

Name: Dual Flanges Vavles MOPA Fiber Lasers Marking Machine
Brand: Chongqing Chuke Intelligent Machinery Equipment Co., Ltd.
Rating: 5.0 (22 reviews)

Payment Type:	T/T,D/A,D/P,L/C,Paypal
Incoterm:	FOB,DDU,CFR,Express Delivery,EXW,DAF,FAS,DES,CIF,FCA,CIP,DEQ,DDP,CPT
Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Dual Flanges Vavles MOPA Fiber Lasers Marking Machine

Brand: Zixu

Laser Type: MOPA Fiber

Laser Brand: JPT, GZTech, MAX or customize

Laser Power: 50W, 100W, 200W, 300W, 500W

Work Area: 100 * 100mm or customize

Laser Wavelength: 1065 ± 10nm

Beam Quality (BBP): ≤ 1.6㎡

Energy Per Pulse: ≤ 1.5mJ

Pulse Duration: 2 ~ 500ns

Frequency: 1 ~ 4000kHz

Positioning Speed: 8000 ~ 23000mm/s

Scanning Speed: 5000 ~ 12000mm/s

Writing Speed: 450 ~ 600cps

Repeat Accuracy: ± 0.002mm

Laser Lifespan: ≥ 100,000hrs

Cooling Method: Air cooling

Power Input: 100 ~ 240VAC @ 50 / 60 Hz

Operation Temperature:: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature:: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 5 ~ 75%, no condensation

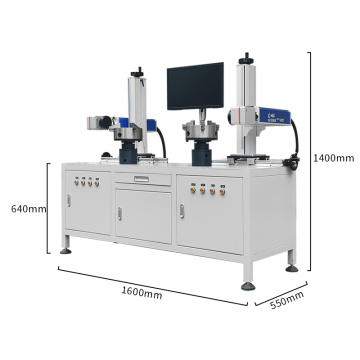

Dimension: 1600 * 550 * 1400mm

N.W.: 180kg

Packaging Dimension: 1800 * 720 * 1600mm

G.W.: 205kg

Additional Info

Packaging: Wood carton,1800 * 720 * 1600mm,205kg

Transportation: Ocean,Express

Place of Origin: China

Certificate: CE，F(xiàn)DA

Payment Type: T/T,D/A,D/P,L/C,Paypal

Incoterm: FOB,DDU,CFR,Express Delivery,EXW,DAF,FAS,DES,CIF,FCA,CIP,DEQ,DDP,CPT

Product Description

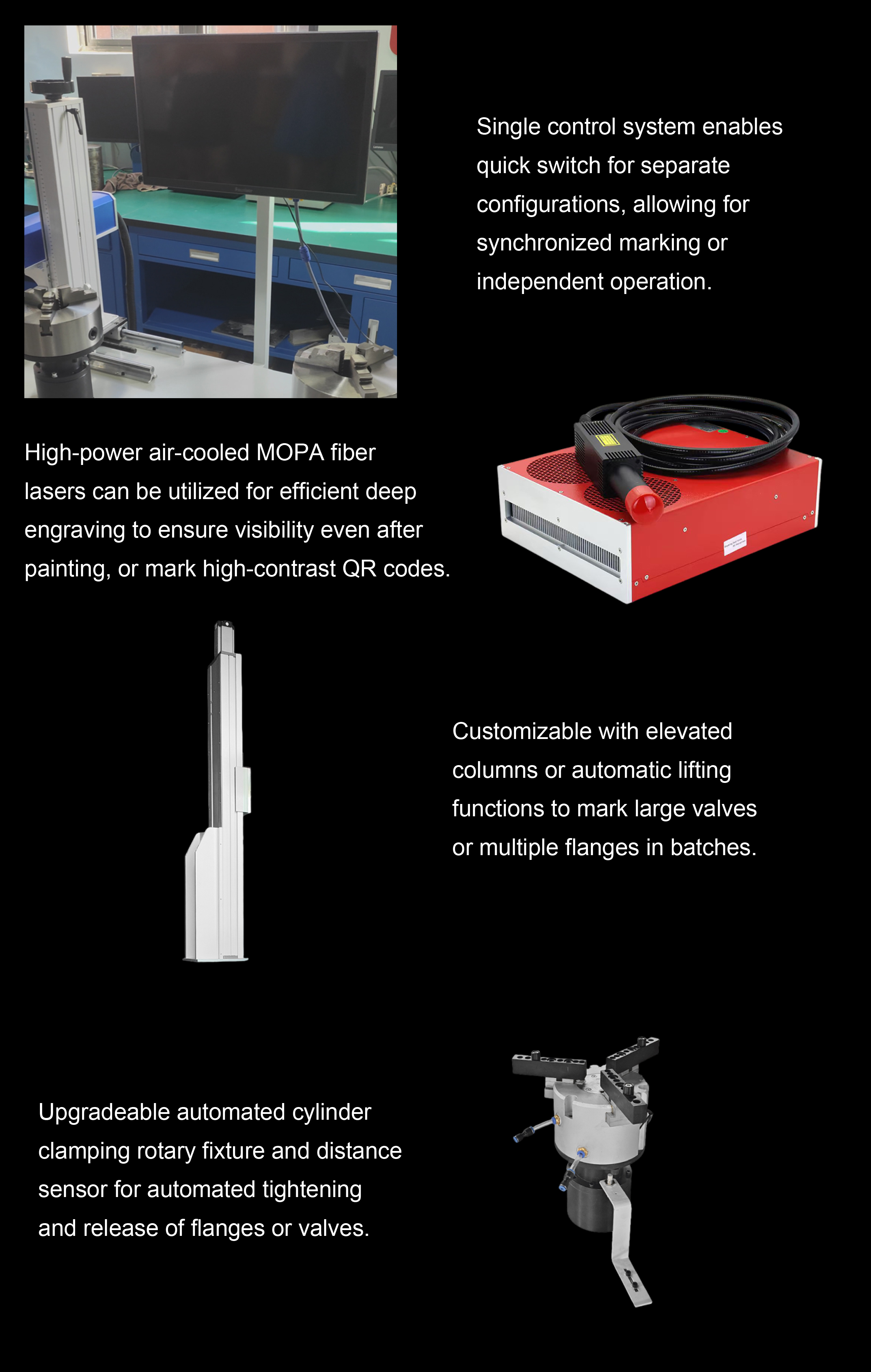

This MOP-A Fiber Laser Marking Machine for dual-flange valves is an upgrade developed specifically for users of valve kits requiring paired marking, building upon the existing Flange Valve Marking Machine platform. It retains the robust durability of traditional pneumatic marking machines while incorporating the in-depth engraving capabilities of dot-peen marking machines. Ultimately, it achieves "one screen, two controls" through a dual-touchscreen integrated control system: it can output identical or paired content simultaneously with a single click, or separately skip codes, meeting the flexible marking needs of the same batch of workpieces.

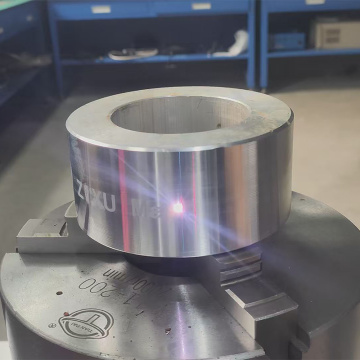

Whether you need to engrave manufacturer information, serial numbers, barcodes, or QR codes on carbon steel, stainless steel, or copper high-reflectivity flanges and valves, this fiber Laser Marking Machine can complete the marking with high contrast and permanent results. The MOP-A configuration is optimized for highly reflective metals such as copper, amplifying pulse controllability. When deep laser marking or highly readable QR codes are required, its efficiency is significantly better than traditional Marking Machine and Dot Peen Marking Machine solutions, making it an ideal Laser Marking Machine option to replace the outdated Pneumatic marking machine.
