Basic Info

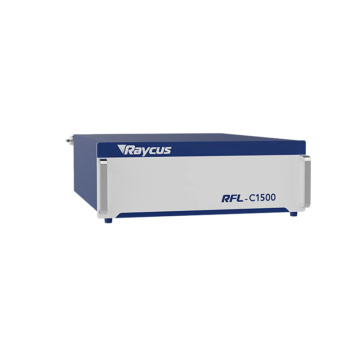

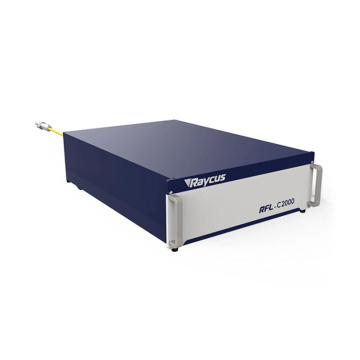

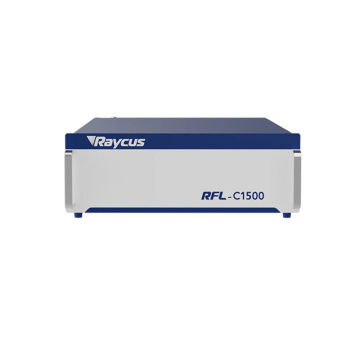

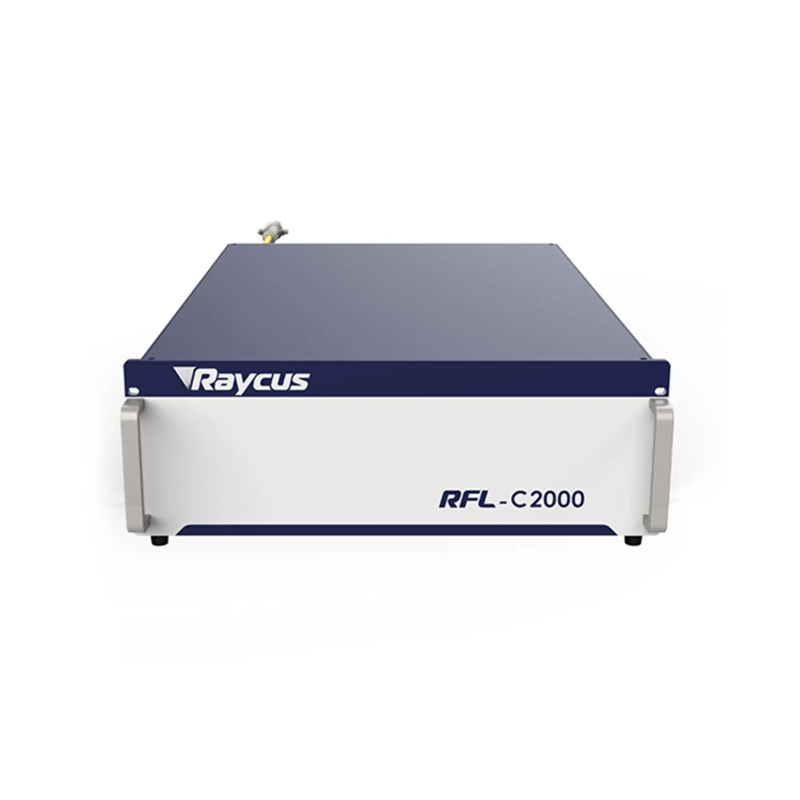

Model No.: Raycus CW FIber Laser Source for Welding
Brand: Zixu
Model: RFL-C1000H / RFL-C1500H / RFL-C2000H
Rated Output Power ( W ): 1000 / 1500 / 2000
Central Wavelength ( Nm ): 1080±5
Modulation Frequency ( Hz ): 50-20000 / 1-5000 / 1-5000
Output Power Stability: ±1.5%
Red Light Indicates Output Power (mW): 0.1-1 / 0.5-1 / 0.5-1
Polarization Direction: random
Output Connector: IQB
BPP: <1.5
Half-angle Divergence Angle (rad): ≤0.06
Output Optical Cable Length (m): 10
Fiber Core Diameter (μm): 50 (100, 200 optional) / 50 / 50
Operating Voltage (VAC): 220±10%,50/60Hz / 380±10%,50/60Hz / 380±10%,50/60Hz
Control Method: RS232/AD/Etherne
Power Adjustment Range ( % ): 10-100
Dimensions (mm): 410*405*150 / 900*447*237 / 900*447*237
Weight (kg): <25 / <70 / <70
Cooling Method: water cooling
Working Temperature (℃): 10 - 40
Additional Info
Transportation: Ocean,Express
Place of Origin: China
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU
Product Description
| High electro-optical conversion efficiency High power stability | ![]() |
![]() | Excellent beam quality High modulation frequency |
| High reliability High electro-optical conversion efficiency | ![]() |
![]() | ![]() |
![]() | ![]() |
?
RAYCUS Laser Source plays a very critical role in Handheld Laser Welding machines. It provides an energy source to the machine so that the welding process can proceed smoothly. Moreover, RAYCUS laser uses advanced fiber laser technology to ensure the quality and stability of the laser beam, thereby making the welding effect even better.
?
The RAYCUS laser perfectly cooperates with the Handheld Laser Welding Machine, which not only improves the welding efficiency and reduces the heat-affected zone, but also improves the quality of the weld and ensures the structure and shape of the welded product. More importantly, RAYCUS lasers can provide stable output for various materials and thicknesses, making them widely used in various industrial productions.
?
RAYCUS laser has good durability and stability, making the maintenance of handheld laser welding machines easier and greatly reducing maintenance costs for manufacturers or users.
