Basic Info

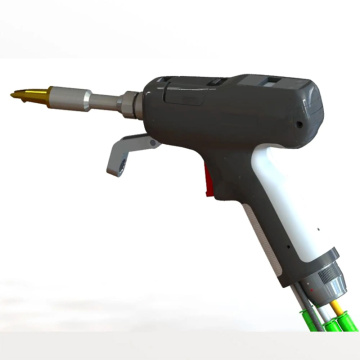

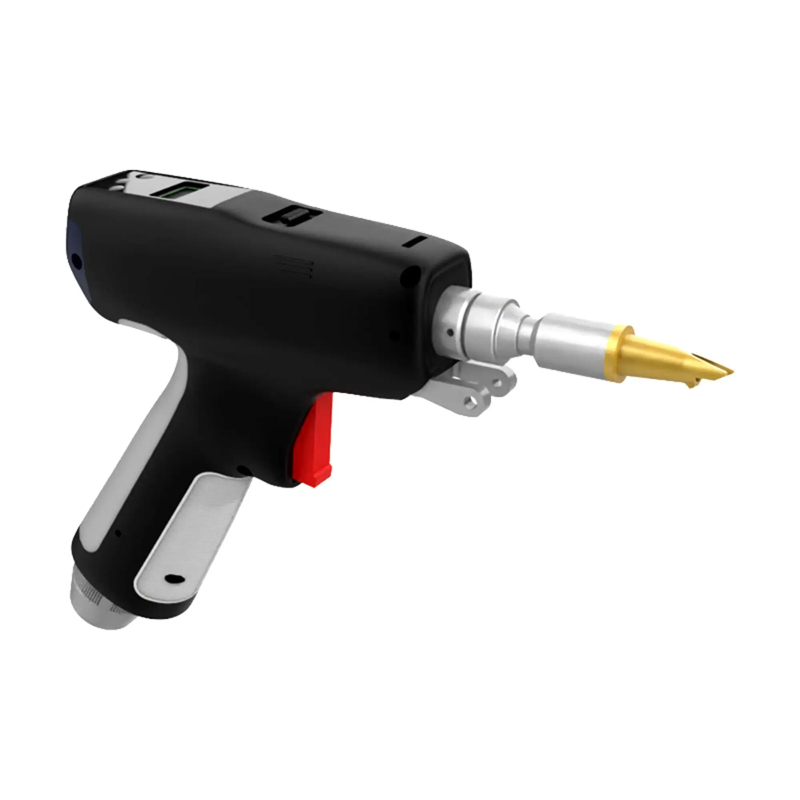

Model No.: Au3tech HW980 Laser Welding Head
Brand: Zixu
Max Power: 3000W
Focus Lens: D20F150(D20F600 For cleaning use)
Collimator Lens: D20F50
Cover Lens: D20T3
Head Weight: 0.6kg(head only)
Max Cleaning Beam Width: 120mm
Wobble Frequency: 0-200HZ
Fiber Sockets: QBH and Customized
Additional Info
Transportation: Ocean,Express
Place of Origin: China
Payment Type: L/C,T/T,D/A,Paypal,D/P
Incoterm: FOB,CFR,CIF,Express Delivery,DAF,DES,FAS,FCA,EXW,CPT,CIP,DEQ,DDP,DDU
Product Description

| * Ergonomic appearance design, simple single-line communication * Gun-mounted control unit quickly adjusts parameters at the gun head * Controlled wire feeding and withdrawal, double protection Lens design reduces the chance of intracavity contamination * The maximum cleaning spot of 120mm improves cleaning efficiency | ![]() |
![]() | * Shockproof and drop-proof design to protect the gun head * Motor controller integrated into the gun head * Strong anti-interference ability, integrating multiple functions such as welding, cleaning, cutting and weld bead cleaning |
|
The HW980 handheld welding head is equipped with a set of cooling water channels. It should be noted that it is recommended to use water cooling when the laser power is greater than 500 watts. |
Impurities in the welding gas such as hydrocarbons and water vapor will damage the lens. The following table is the recommended welding gas specifications. The higher the purity of the gas, the better the quality of the welding gap. |
|
HW980 is suitable for most industrial laser generators. It is equipped with its own collimating lens assembly. |
The welding head can adjust the focus position. The adjustment method is to rotate the locking ring counterclockwise. After loosening, adjust the length of the copper nozzle to obtain the required spot energy. After adjusting the position, tighten the locking ring and The copper nozzle is locked in the position just adjusted.There is a scale on the copper nozzle, making it easy and quick to adjust. |
Product Categories : Accessories And Consumables > Welding Torch
